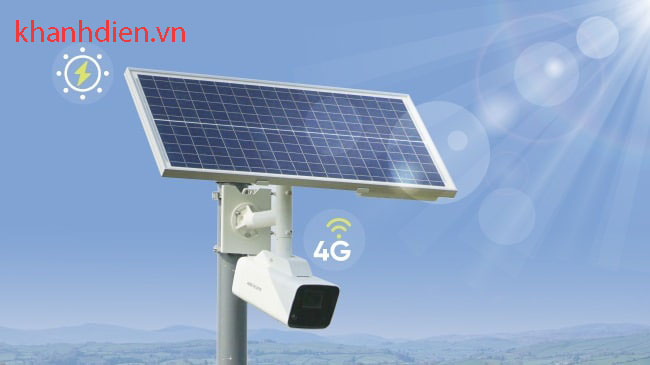

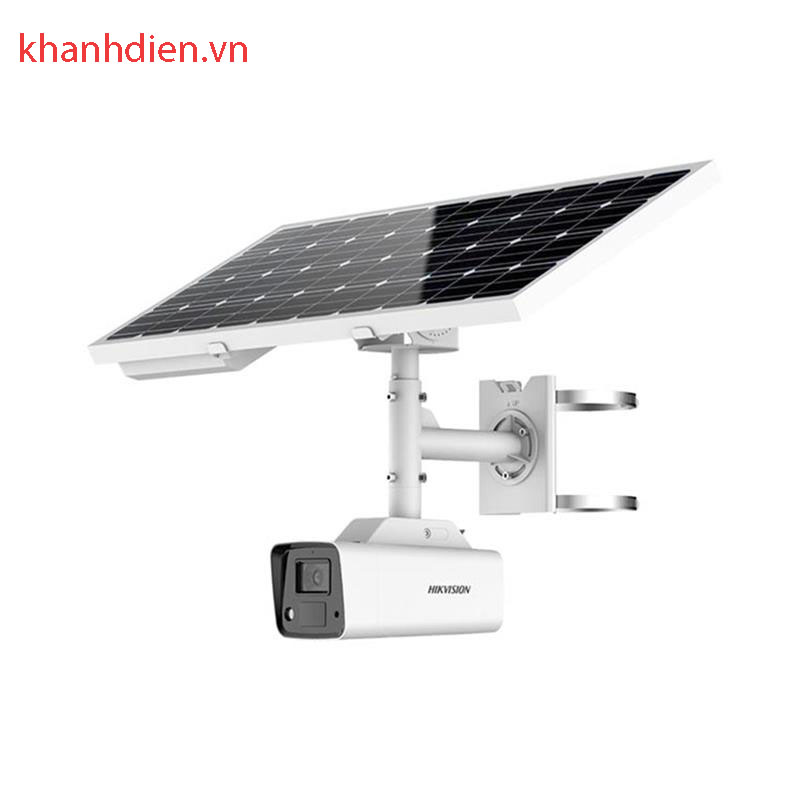

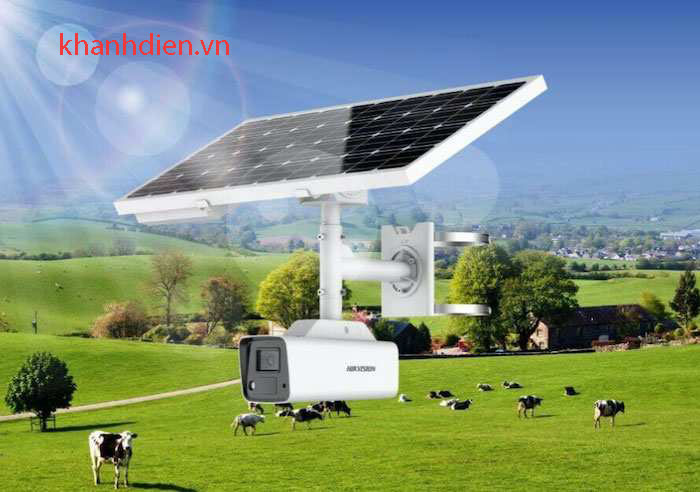

Camera IP năng lượng mặt trời 4MP HIKVISION DS-2XS2T47G0-LDH/4G/C18S40

Model

DS-2XS2T47G0-LDH/4G/C18S40

Camera

Image Sensor

1/1.8-inch Progressive Scan CMOS

Max. Resolution

2688 × 1520

Min. Illumination

Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light

Shutter Time

1/3 s to 1/100,000 s

Angle Adjustment

Solar Cover: Pan: 0° to 358°, tilt: -40° to 40°
Camera: Pan: 0° to 360°，tilt: -60° to 0°

Lens

Lens Type

Fixed focal lens, 4 and 6 mm optional

Aperture

F1.0

Focal Length & FOV

4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°

Lens Mount

M16

DORI

DORI

4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m
6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Performance mode: up to 30 m
Proactive mode: up to 10 m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
H.264+: Performance mode: main stream supports
H.265+: Performance mode: main stream supports

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile/Main Profile/High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.265 and H.264 support

Region Of Interest (ROI)

1 fixed region for mainstream

Audio

Audio Sampling Rate

8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)

Network

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE, and digest authentication for Open Network Video Interface

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface, ISAPI, SDK, ISUP

Protocols

TCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X

User/Host

Up to 32 users. 3 user levels: administrator, operator, and user

Network Storage

Auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central
Proactive mode: Hik-Connect

Web Browser

Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+

Mobile Communication

Frequency

LTE-TDD: Band 38/40/41;
LTE-FDD: Band 1/3/5/7/8/20/28;
WCDMA: Band 1/5/8;
GSM: band 3/5/8

Standard

LTE-TDD, LTE-FDD, WCDMA, GSM


SNR

≥ 52 dB

Wide Dynamic Range (WDR)

120 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR

PIR Angle

Horizontal: 100°, vertical: 80°

PIR Range

Up to 15 m

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in 64 GB eMMC storage (50 GB avaible for recording)

Built-In Microphone

Yes

Built-In Speaker

Yes

Reset Key

Yes

Event

Basic Event

Motion detection, video tampering alarm, exception, PIR

Linkage

Upload to the memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email

General

Power

Power Consumption and Current:
Typical power scenarios: 1.85 W (4 G working)
Standby scenarios: 40 mW
Max. power consumption: 7.2 W
Power Supply:
12 VDC ± 25%
*For debugging only
40 W(deviation: ± 2 W) Solar panels
Power Interface:
Power supply interface: Φ5.5 mm coaxial power plug
Extended solar panel: four-core aviation connector

Material

ADC12

Storage Conditions

-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

Language

33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

General Function

Heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Startup And Operating Conditions

-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)

Dimension

614.8 mm × 390.5 mm × 760 mm

Battery

Battery Type

Ternary lithium

Capacity

23.2 Ah

Max. Charging Voltage

8.4 V

Operating Temperature

Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)
Discharge: -20 °C to 55 °C (-4 °F to 131 °F). Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)

Battery Voltage

5.5 V to 8.4 V

Cycle Lifetime

Performance mode: 2.5 day
Proactive mode: 4.5 day
Standby mode: 24 days

Battery Life

More than 500 cycles

Approval

RF

FCC ID (FCC Part 15.247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G);
EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));

EMC

FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015)

Safety

CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
LOA (IEC/EN 60950-1)

Environment

CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
